01
ASTM A1008 / A1008M
Cold-rolled carbon sheet and strip
Standard specification for cold-rolled carbon steel sheet and strip for cold forming.
Carbon Steel — Industrial Product

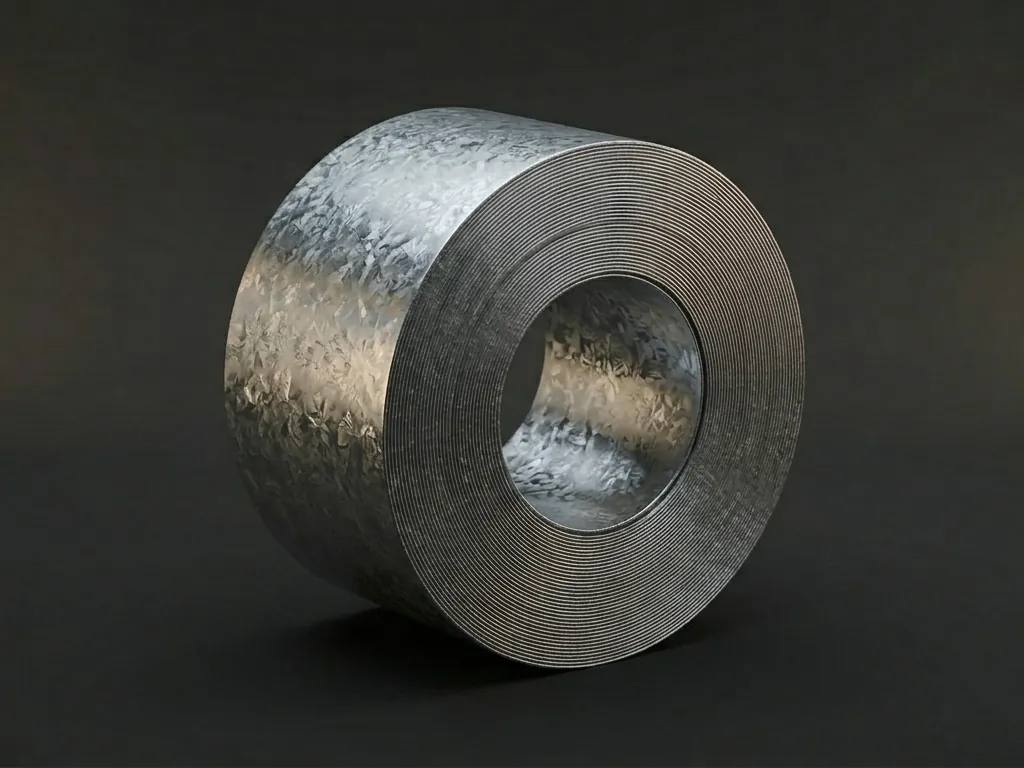

Regular Spangle Galvanized Coil
Hot dipped galvanized carbon steel coil supplied to ASTM A1008 / EN 10346 for roofing, cladding and structural applications.
Indicative priceUSD 580 - 780 / MT
Lead time10 - 20 working days
01
Overview
Regular Spangle Galvanized Coil combines low-carbon carbon steel with a continuous hot-dip zinc coating and a visible regular spangle pattern for reliable corrosion protection and consistent dimensional control. The galvanized surface supports outdoor exposure, forming and welding operations, making the coil suited to roofing, cladding, building structures, light steel framing and general fabrication. Supplied to ASTM A1008 / EN 10346 with mill test certification per EN 10204 3.1, it supports global procurement across construction and industrial supply chains.
Key Characteristics
- 01 High Strength Provides high mechanical strength for demanding structural and industrial applications.
- 02 Good Toughness Provides good toughness and resistance to brittle fracture.
- 03 Good Weldability Supports welding using suitable procedures and compatible filler materials.
- 04 Good Formability Supports bending, forming and other fabrication processes with suitable processing conditions.
- 05 Standard Compliance Manufactured and supplied in accordance with the specified material and product standards.
- 06 Third-Party Inspection Third-party inspection can be arranged according to project and procurement requirements.
Typical Applications
- Appliance Manufacturing Enclosures, panels and structural components for household and commercial appliances.
- Building & Structural Structural and architectural components for commercial, industrial and high-rise buildings.
- Machinery & Equipment Shafts, gears, housings, frames and other components for industrial machinery and OEM equipment.
- Stamping & Machining Metal forming and machining for stamping, deep drawing, CNC machining and forging operations.
02
Specifications
Numbers in this section correspond to the applicable product standard, formatted for direct use in enquiry and approval documents.
Product specification
- Material
- Carbon steel
- Grade
- A36 / S235JR / SS400
- UNS designation
- K02600
- Product form
- Coil / strip
- Manufacturing method
- Hot rolled / cold rolled
- Surface / condition
- Galvanized
- Cross-section
- Coiled strip, constant thickness and width
Supply specifications
- Thickness
- 0.3 - 6.0 mm
- Width
- 600 - 1,830 mm
- Coil weight
- 3 - 25 MT per coil
- Inner diameter
- 508 mm / 610 mm
- Surface finish
- Galvanized
- Edge condition
- Mill edge; slit edge on request
- Marking
- Standard mill marking; customer marking on request
Final supply is confirmed against the project drawing, purchase agreement and the mill test certificate.
Chemical composition
ElementRequirement
C <= 0.25 %
Si <= 0.40 %
Mn <= 1.50 %
P <= 0.040 %
S <= 0.050 %
Fe Balance
Reference: applicable standard Carbon Steel.
Mechanical properties
PropertyRequirement
Tensile strength 400 - 550 MPa
Yield strength (0.2% offset) >= 250 MPa
Elongation in 50 mm >= 23 %
Hardness <= 160 HB
Reference: applicable standard Carbon Steel at room temperature.
Physical properties
PropertyTypical Value
Density 7.85 g/cm³
Elastic modulus 200 GPa
Thermal conductivity 50 W/m·K at 100°C
Electrical resistivity 0.17 μΩ·m
Specific heat 490 J/kg·K
Melting range 1,450 - 1,530 °C
Thermal expansion 11.6 x 10⁻⁶ /°C
Reference: Typical material values, Carbon Steel.
Reference framework
Standards & documentation
The applicable product, dimensional and inspection standards should be confirmed together in the purchase specification.
02
ASTM A653 / A653M
Steel sheet, zinc-coated (galvanized)
Standard specification for steel sheet zinc-coated (galvanized) by the hot-dip process.
03
EN 10346
Continuously hot-dip coated steel flat products
European reference for continuously hot-dip coated flat steel products for cold forming.
04
JIS G3302
Hot-dip zinc-coated carbon steel sheet and strip
Japanese reference for hot-dip zinc-coated carbon steel sheet and strip.
05
GB/T 2518
Continuously hot-dip zinc-coated steel sheet and strip
Chinese reference for continuously hot-dip zinc-coated steel sheet and strip.
06
EN 10204
Inspection documents
Defines inspection document types such as 3.1 and 3.2 for metallic product delivery.
03
Capability
From custom dimensions and precision sizing to heat treatment, surface finishing and product-specific processing, Wayland coordinates supply solutions tailored to your requirements.
Cutting
Cut-to-length and custom cutting according to order requirements.
Slitting & Edge Processing
Slitting, edge trimming and related processing according to required width and edge condition.
Custom Dimensions
Non-standard dimensions, tolerances and dimensional combinations subject to product and mill capability.
Precision Sizing
Precision sizing and dimensional control for tighter tolerance requirements.
Cold Working
Cold drawing, cold sizing and other cold-working processes where required.
Surface Finishing
Surface treatment and finishing according to product, specification and application requirements.
Surface Coating & Plating
Coating, plating and other surface protection treatments according to product and application requirements.
Forming
Bending, forming and other shape modification according to drawings or order requirements.
Customization
Custom dimensions, lengths, surface conditions, end preparations and inspection requirements can be supplied according to project specifications. Final capability is confirmed per enquiry based on grade, size range and applicable standard.
04
Quality
Inspection and documentation procedures are coordinated to meet the requirements of the applicable product standard and the project specification.
- Dimensional inspection Geometry, dimensions and tolerances against the applicable standard
- Visual and surface inspection Surface condition, marking and overall appearance
Documents
- Inspection Report
- Chemical analysis Per heat, against the applicable standard
- Mechanical testing Tensile, yield, elongation and hardness
- Non-destructive testing UT, eddy-current, hydrostatic or other NDT as applicable
- Positive material identification PMI for alloy verification when required
Documents
- Mill Test Certificate (MTC)
- Heat number traceability Heat number carried through MTC and product marking
- Third-party inspection coordination SGS / BV / TÜV on request
Documents
- Third-Party Inspection Report
- EN 10204 documentation 3.1 MTC standard; 3.2 on request
Documents
- EN 10204 3.1 Mill Test Certificate
- EN 10204 3.2 Inspection Certificate
- Certificate of Origin
05
Selection
A well-prepared specification is the most efficient defence against clarification cycles.
- 01 Select material & grade
Choose the material grade according to service conditions, performance requirements and applicable standards.
- 02 Define size & supply condition
Specify the required dimensions, surface condition, heat-treatment condition and delivery requirements.
- 03 Confirm standard & requirements
State the applicable product standard, dimensional standard and governing project specification.
- 04 Define inspection & documentation
Confirm inspection, testing, certification and documentation requirements before order placement.
Example procurement specification
A complete specification suitable for enquiry, covering product, technical requirements, certification and delivery terms.
- Product
- Regular Spangle Galvanized Coil
- Grade
- A36
- Standard
- ASTM A1008
- Dimensions
- Thickness 1.20 mm × Width 1250 mm × Coil ID 508 mm
- Condition
- Hot-Dip Galvanized; Spangle Regular / Zero; Chromated / Oiled
- Certification
- EN 10204 3.1 Mill Test Certificate
- Quantity
- 20 Metric Tons
- Packaging
- Seaworthy Export Packing
- Incoterm
- CIF Hamburg
06
Logistics
From mill dispatch to destination port, each stage is coordinated with the nominated forwarder and documented against the purchase specification.
-
Packaging
Export-suitable packaging with surface and edge protection.
Bundled, wrapped or crated according to product form and transport mode. Outer surface protected with weather-resistant material; ends and edges shielded against transit damage.
-
Loading
FCL container for standard sizes; break bulk for oversized cargo.
Container loading via nominated forwarder. LCL and dimensions outside container allowance coordinated against the mill dispatch schedule.
-
Documentation
Commercial invoice, packing list and certificate of origin.
Mill documentation travels with the shipment. EN 10204 3.1 / 3.2 certificates and third-party inspection reports provided as per purchase specification.
-
Shipment
Sea freight as standard; alternative routes on request.
FCL / LCL container shipment or break bulk for oversized dimensions. Logistics coordinated through the nominated forwarder.
-
Delivery
FOB · CFR · CIF · FCA · EXW arrangements available.
Incoterm 2020. Port of loading: Shanghai / Ningbo / Shenzhen. Final destination and terms confirmed per enquiry.
07
FAQ
Most enquiries reduce to a small set of recurring technical questions.
01 What zinc coating weights are available for galvanized coil?
Common zinc coating designations are Z60, Z90, Z120, Z180, Z275 (g/m² total both sides). Heavier coatings are available on request.
02 Can the spangle pattern be specified?
Yes. Regular spangle, minimized spangle and zero spangle (galvannealed) finishes can be supplied. Skin-passed smooth surface is also available.
03 What is the difference between galvanized and galvannealed coil?
Galvanized coil has a pure zinc coating with visible spangle; galvannealed coil is heat-treated after coating to form a zinc-iron alloy with matte, paintable surface.
04 Are chromate and RoHS-compliant finishes available?
Yes. Hexavalent chromate, trivalent chromate and chromate-free (RoHS) passivation options are available. Final selection is confirmed per project.
05 What coil dimensions and MOQ apply?
Thickness 0.25 - 3.0 mm, width up to 1500 mm. MOQ varies by dimension; for common sizes 5 - 25 MT is typical.
