ASTM A653 / A653M
Steel sheet, zinc-coated (galvanized)
Standard specification for steel sheet zinc-coated (galvanized) by the hot-dip process.
Carbon Steel — Industrial Product

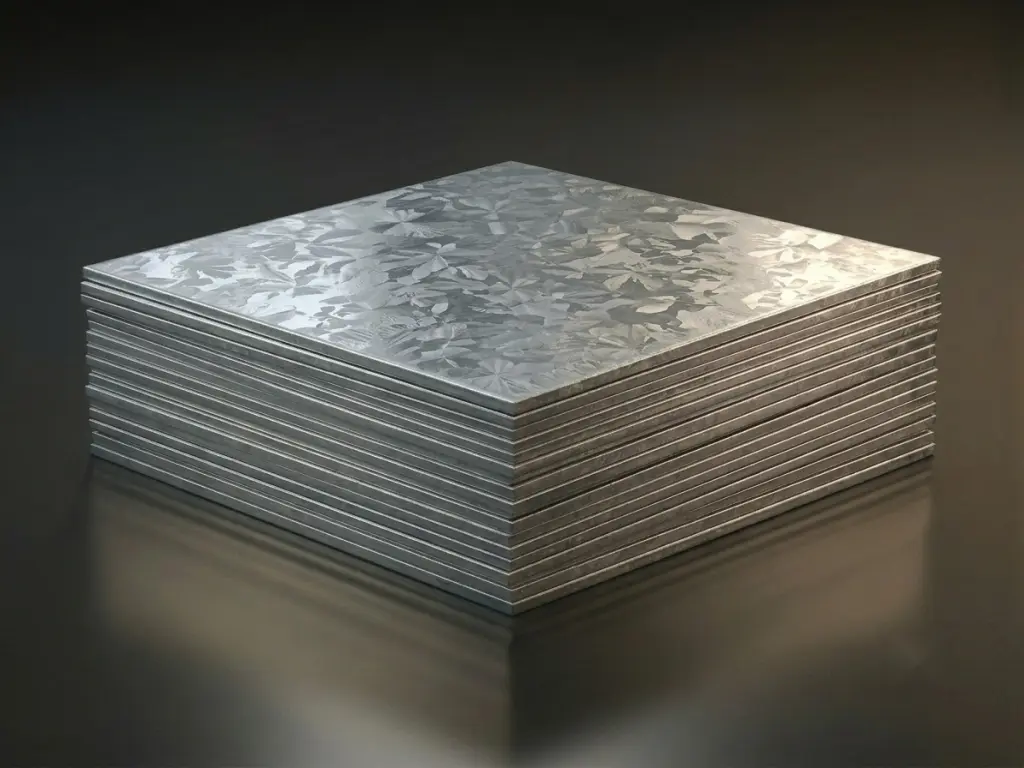

Galvanized Regular Spangle Steel Plate
Hot dipped galvanized carbon steel plate supplied to ASTM A653 for roofing, cladding and outdoor structural applications.
Indicative priceUSD 580 - 780 / MT
Lead time15 - 25 working days
01
Overview
Galvanized Regular Spangle Steel Plate combines low-carbon carbon steel with a continuous hot-dip zinc coating and visible regular spangle pattern for reliable corrosion protection and consistent dimensional control. The galvanized surface supports outdoor exposure, forming and welding, making the plate suited to roofing, wall cladding, building structures, storage tanks, fencing and general outdoor fabrication. Supplied to ASTM A653 with mill test certification per EN 10204 3.1, it supports global procurement for construction, infrastructure and outdoor industrial projects.
Key Characteristics
- 01 High Strength Provides high mechanical strength for demanding structural and industrial applications.
- 02 Good Toughness Provides good toughness and resistance to brittle fracture.
- 03 Good Weldability Supports welding using suitable procedures and compatible filler materials.
- 04 Good Formability Supports bending, forming and other fabrication processes with suitable processing conditions.
- 05 Standard Compliance Manufactured and supplied in accordance with the specified material and product standards.
- 06 Third-Party Inspection Third-party inspection can be arranged according to project and procurement requirements.
Typical Applications
- Building & Structural Structural and architectural components for commercial, industrial and high-rise buildings.
- Bridge & Infrastructure Structural components and plate applications in bridges, elevated structures and major infrastructure projects.
- Shipbuilding Hull, structural sections and piping for commercial and naval vessels.
- Storage Tanks Atmospheric and low-pressure storage tanks and related components for process facilities and bulk terminals.
- Machinery & Equipment Shafts, gears, housings, frames and other components for industrial machinery and OEM equipment.
02
Specifications
Numbers in this section correspond to the applicable product standard, formatted for direct use in enquiry and approval documents.
Product specification
- Material
- Carbon steel
- Grade
- A36 / S235JR / SS400
- UNS designation
- K02600
- Product form
- Plate / sheet
- Manufacturing method
- Hot rolled / cold rolled
- Surface / condition
- Galvanized Regular Spangle
- Cross-section
- Flat rectangular section, uniform thickness
Supply specifications
- Thickness
- 0.5 - 100 mm
- Width
- 1,000 - 3,000 mm
- Length
- 2,000 - 12,000 mm
- Tolerance
- According to ASTM A480 / EN 10051
- Surface finish
- Galvanized Regular Spangle
- Edge condition
- Mill edge; slit edge on request
- Marking
- Standard mill marking; customer marking on request
Final supply is confirmed against the project drawing, purchase agreement and the mill test certificate.
Chemical composition
ElementRequirement
C <= 0.25 %
Si <= 0.40 %
Mn <= 1.50 %
P <= 0.040 %
S <= 0.050 %
Fe Balance
Reference: ASTM A653 Carbon Steel.
Mechanical properties
PropertyRequirement
Tensile strength 400 - 550 MPa
Yield strength (0.2% offset) >= 250 MPa
Elongation in 50 mm >= 23 %
Hardness <= 160 HB
Reference: ASTM A653 Carbon Steel at room temperature.
Physical properties
PropertyTypical Value
Density 7.85 g/cm³
Elastic modulus 200 GPa
Thermal conductivity 50 W/m·K at 100°C
Electrical resistivity 0.17 μΩ·m
Specific heat 490 J/kg·K
Melting range 1,450 - 1,530 °C
Thermal expansion 11.6 x 10⁻⁶ /°C
Reference: Typical material values, Carbon Steel.
Reference framework
Standards & documentation
The applicable product, dimensional and inspection standards should be confirmed together in the purchase specification.
02
EN 10346
Continuously hot-dip coated steel flat products
European reference for continuously hot-dip coated flat steel products for cold forming.
03
JIS G3302
Hot-dip zinc-coated carbon steel sheet and strip
Japanese reference for hot-dip zinc-coated carbon steel sheet and strip.
04
GB/T 2518
Continuously hot-dip zinc-coated steel sheet and strip
Chinese reference for continuously hot-dip zinc-coated steel sheet and strip.
05
ASME SA653
ASME galvanized steel reference
ASME counterpart of ASTM A653 for general galvanized steel applications.
06
EN 10204
Inspection documents
Defines inspection document types such as 3.1 and 3.2 for metallic product delivery.
03
Capability
From custom dimensions and precision sizing to heat treatment, surface finishing and product-specific processing, Wayland coordinates supply solutions tailored to your requirements.
Cutting
Cut-to-length and custom cutting according to order requirements.
Custom Dimensions
Non-standard dimensions, tolerances and dimensional combinations subject to product and mill capability.
Precision Sizing
Precision sizing and dimensional control for tighter tolerance requirements.
Cold Working
Cold drawing, cold sizing and other cold-working processes where required.
Heat Treatment
Heat treatment according to material, specification and applicable standard.
Surface Finishing
Surface treatment and finishing according to product, specification and application requirements.
Forming
Bending, forming and other shape modification according to drawings or order requirements.
Machining
Turning, drilling, milling and other machining operations where required.
Customization
Custom dimensions, lengths, surface conditions, end preparations and inspection requirements can be supplied according to project specifications. Final capability is confirmed per enquiry based on grade, size range and applicable standard.
04
Quality
Inspection and documentation procedures are coordinated to meet the requirements of the applicable product standard and the project specification.
- Dimensional inspection Geometry, dimensions and tolerances against the applicable standard
- Visual and surface inspection Surface condition, marking and overall appearance
Documents
- Inspection Report
- Chemical analysis Per heat, against the applicable standard
- Mechanical testing Tensile, yield, elongation and hardness
- Non-destructive testing UT, eddy-current, hydrostatic or other NDT as applicable
- Positive material identification PMI for alloy verification when required
Documents
- Mill Test Certificate (MTC)
- Heat number traceability Heat number carried through MTC and product marking
- Third-party inspection coordination SGS / BV / TÜV on request
Documents
- Third-Party Inspection Report
- EN 10204 documentation 3.1 MTC standard; 3.2 on request
Documents
- EN 10204 3.1 Mill Test Certificate
- EN 10204 3.2 Inspection Certificate
- Certificate of Origin
05
Selection
A well-prepared specification is the most efficient defence against clarification cycles.
- 01 Select material & grade
Choose the material grade according to service conditions, performance requirements and applicable standards.
- 02 Define size & supply condition
Specify the required dimensions, surface condition, heat-treatment condition and delivery requirements.
- 03 Confirm standard & requirements
State the applicable product standard, dimensional standard and governing project specification.
- 04 Define inspection & documentation
Confirm inspection, testing, certification and documentation requirements before order placement.
Example procurement specification
A complete specification suitable for enquiry, covering product, technical requirements, certification and delivery terms.
- Product
- Galvanized Regular Spangle Steel Plate
- Grade
- A36
- Standard
- ASTM A653
- Dimensions
- Thickness 3.0 mm × Width 1500 mm × Length 6000 mm
- Condition
- Hot-Dip Galvanized; Spangle Regular; Chromated
- Certification
- EN 10204 3.1 Mill Test Certificate
- Quantity
- 20 Metric Tons
- Packaging
- Seaworthy Export Packing
- Incoterm
- CIF Hamburg
06
Logistics
From mill dispatch to destination port, each stage is coordinated with the nominated forwarder and documented against the purchase specification.
-
Packaging
Export-suitable packaging with surface and edge protection.
Bundled, wrapped or crated according to product form and transport mode. Outer surface protected with weather-resistant material; ends and edges shielded against transit damage.
-
Loading
FCL container for standard sizes; break bulk for oversized cargo.
Container loading via nominated forwarder. LCL and dimensions outside container allowance coordinated against the mill dispatch schedule.
-
Documentation
Commercial invoice, packing list and certificate of origin.
Mill documentation travels with the shipment. EN 10204 3.1 / 3.2 certificates and third-party inspection reports provided as per purchase specification.
-
Shipment
Sea freight as standard; alternative routes on request.
FCL / LCL container shipment or break bulk for oversized dimensions. Logistics coordinated through the nominated forwarder.
-
Delivery
FOB · CFR · CIF · FCA · EXW arrangements available.
Incoterm 2020. Port of loading: Shanghai / Ningbo / Shenzhen. Final destination and terms confirmed per enquiry.
07
FAQ
Most enquiries reduce to a small set of recurring technical questions.
01 What is galvanized steel plate?
Galvanized steel plate is hot-dip zinc-coated steel plate offering corrosion resistance suitable for outdoor, marine and industrial exposure.
02 What zinc coating designations are available?
Common designations are Z60, Z90, Z120, Z180, Z275 (g/m² total both sides). Heavier coatings up to Z600 are available on request.
03 Can spangle pattern be specified?
Yes. Regular spangle, minimized spangle and zero spangle (galvannealed) finishes can be supplied.
04 What thickness range is available?
Standard thickness 0.4 - 6 mm. Heavier gauges up to 12 mm can be supplied as cut-to-length from coil.
05 Is chromate-free / RoHS-compliant finish available?
Yes. Trivalent chromate and chromate-free passivation options are available to meet RoHS, REACH and OEM environmental requirements.
