01
ASTM A312 / A312M
Austenitic stainless steel pipe
Seamless, straight-seam welded and heavily cold-worked welded austenitic stainless steel pipe.
Stainless Steel — Industrial Product

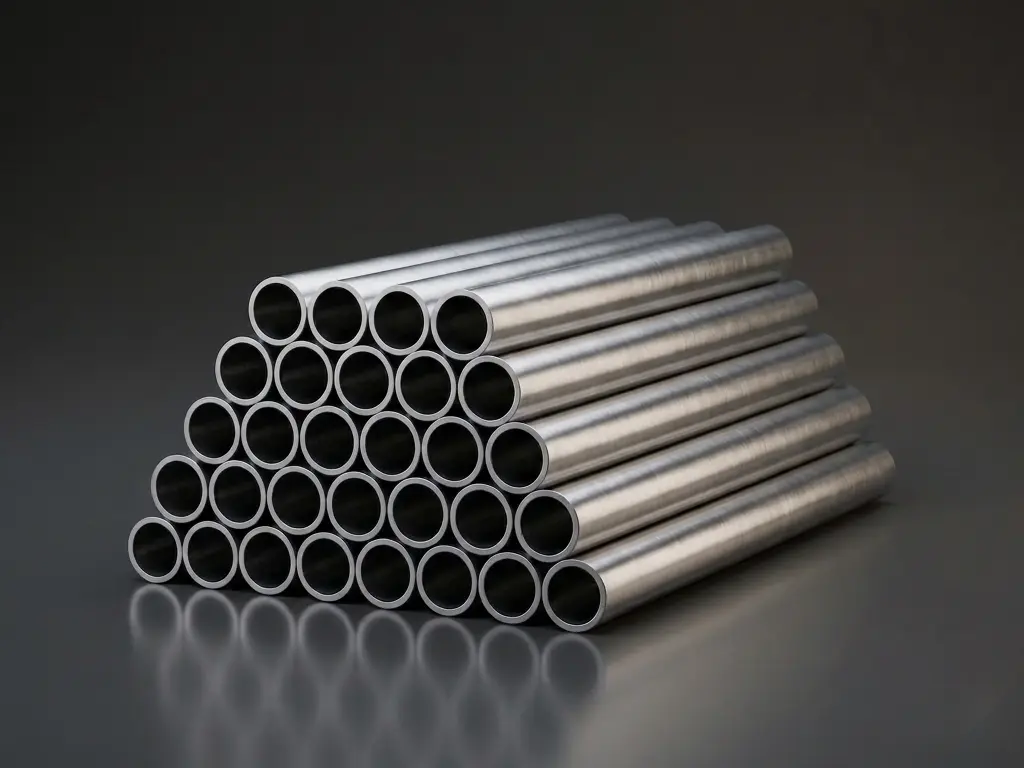

Brushed Steel Pipe
Austenitic 304 stainless steel pipe supplied to ASTM A312 / ASME SA312 / EN 10216-5, brushed for architectural and kitchen applications.
Indicative priceUSD 1,800 - 2,400 / MT (surface premium included)
Lead time20 - 30 working days
01
Overview
Brushed Steel Pipe combines austenitic 304 chemistry with a directional brushed surface for reliable corrosion resistance and a refined decorative appearance. The brushed finish softens reflections, masks minor surface marks and delivers consistent dimensional accuracy, making the pipe suited to architectural handrails, decorative structures, kitchen equipment, display systems and modern interior design. Supplied to ASTM A312 / ASME SA312 / EN 10216-5 with mill test certification per EN 10204 3.1, it supports global procurement for design-led architectural and industrial projects.
Key Characteristics
- 01 Corrosion Resistance Provides improved resistance to corrosive industrial environments.
- 02 Good Formability Supports bending, forming and other fabrication processes with suitable processing conditions.
- 03 Good Weldability Supports welding using suitable procedures and compatible filler materials.
- 04 Oxidation Resistance Provides resistance to oxidation and scaling at elevated temperatures.
- 05 Standard Compliance Manufactured and supplied in accordance with the specified material and product standards.
- 06 Traceable Documentation Supplied with documentation supporting material identification, chemical and mechanical traceability.
Typical Applications
- Kitchen & Catering Equipment Worktops, sinks and food-service equipment where cleanliness and environmental durability are required.
- Decorative Architecture Interior and exterior architectural finishes and decorative components requiring appearance and environmental durability.
- Chemical Processing Process piping, transfer systems and equipment for corrosive and high-purity media.
- Heat Exchangers Shell-and-tube, plate and finned heat exchangers for HVAC, process and refrigeration applications.
- Boiler Tubes Water-wall, superheater and economizer tubes for utility and industrial boilers.
02
Specifications
Numbers in this section correspond to the applicable product standard, formatted for direct use in enquiry and approval documents.
Product specification
- Material
- Stainless steel
- Grade
- 304 / 1.4301 / SUS304
- UNS designation
- S30400
- Product form
- Pipe / tube
- Manufacturing method
- Hot finished / cold drawn
- Surface / condition
- Brushed
- Cross-section
- Hollow circular, uniform wall thickness
Supply specifications
- Outside diameter
- 6 - 630 mm
- Wall thickness
- 0.5 - 40 mm
- Length
- 3 - 12 m; custom lengths on request
- Schedule range
- Sch 5S through XXS
- Tolerance
- According to ASTM A312 / ASME B36.19
- Surface finish
- Brushed
- Marking
- Standard mill marking; customer marking on request
Final supply is confirmed against the project drawing, purchase agreement and the mill test certificate.
Chemical composition
ElementRequirement
C <= 0.08 %
Si <= 0.75 %
Mn <= 2.00 %
P <= 0.045 %
S <= 0.030 %
Cr 18.0 - 20.0 %
Ni 8.0 - 10.5 %
Fe Balance
Reference: applicable standard Stainless Steel.
Mechanical properties
PropertyRequirement
Tensile strength >= 515 MPa
Yield strength (0.2% offset) >= 205 MPa
Elongation in 50 mm >= 40 %
Hardness <= 201 HB / <= 92 HRB
Reference: applicable standard Stainless Steel at room temperature.
Physical properties
PropertyTypical Value
Density 8.0 g/cm³
Elastic modulus 193 GPa
Thermal conductivity 16.3 W/m·K at 100°C
Electrical resistivity 0.74 μΩ·m
Specific heat 500 J/kg·K
Melting range 1,400 - 1,450 °C
Thermal expansion 17.0 x 10⁻⁶ /°C
Reference: Typical material values, Stainless Steel.
Reference framework
Standards & documentation
The applicable product, dimensional and inspection standards should be confirmed together in the purchase specification.
02
ASME SA312
ASME pressure piping reference
ASME counterpart of ASTM A312 for pressure piping and pressure vessel applications.
03
ASME B36.19
Stainless steel pipe dimensions
Dimensional reference for nominal pipe size, outside diameter and stainless steel schedules.
04
EN 10216-5
Seamless tubes for pressure purposes
European reference for seamless stainless steel tubes with specified elevated / low temperature properties.
05
JIS G3459
Stainless steel pipes for piping
Japanese reference for corrosion-resistant stainless steel pipes used in piping.
06
EN 10204
Inspection documents
Defines inspection document types such as 3.1 and 3.2 for metallic product delivery.
03
Capability
From custom dimensions and precision sizing to heat treatment, surface finishing and product-specific processing, Wayland coordinates supply solutions tailored to your requirements.
Cutting
Cut-to-length and custom cutting according to order requirements.
Custom Dimensions
Non-standard dimensions, tolerances and dimensional combinations subject to product and mill capability.
Precision Sizing
Precision sizing and dimensional control for tighter tolerance requirements.
Cold Working
Cold drawing, cold sizing and other cold-working processes where required.
Heat Treatment
Heat treatment according to material, specification and applicable standard.
Surface Finishing
Surface treatment and finishing according to product, specification and application requirements.
Forming
Bending, forming and other shape modification according to drawings or order requirements.
End Preparation
Beveling, threading, chamfering and other end preparation according to product requirements.
Welding & Fabrication
Welding, fabrication and related assembly according to drawings and project requirements.
Customization
Custom dimensions, lengths, surface conditions, end preparations and inspection requirements can be supplied according to project specifications. Final capability is confirmed per enquiry based on grade, size range and applicable standard.
04
Quality
Inspection and documentation procedures are coordinated to meet the requirements of the applicable product standard and the project specification.
- Dimensional inspection Geometry, dimensions and tolerances against the applicable standard
- Visual and surface inspection Surface condition, marking and overall appearance
Documents
- Inspection Report
- Chemical analysis Per heat, against the applicable standard
- Mechanical testing Tensile, yield, elongation and hardness
- Non-destructive testing UT, eddy-current, hydrostatic or other NDT as applicable
- Positive material identification PMI for alloy verification when required
Documents
- Mill Test Certificate (MTC)
- Heat number traceability Heat number carried through MTC and product marking
- Third-party inspection coordination SGS / BV / TÜV on request
Documents
- Third-Party Inspection Report
- EN 10204 documentation 3.1 MTC standard; 3.2 on request
Documents
- EN 10204 3.1 Mill Test Certificate
- EN 10204 3.2 Inspection Certificate
- Certificate of Origin
05
Selection
A well-prepared specification is the most efficient defence against clarification cycles.
- 01 Select material & grade
Choose the material grade according to service conditions, performance requirements and applicable standards.
- 02 Define size & supply condition
Specify the required dimensions, surface condition, heat-treatment condition and delivery requirements.
- 03 Confirm standard & requirements
State the applicable product standard, dimensional standard and governing project specification.
- 04 Define inspection & documentation
Confirm inspection, testing, certification and documentation requirements before order placement.
Example procurement specification
A complete specification suitable for enquiry, covering product, technical requirements, certification and delivery terms.
- Product
- Brushed Steel Pipe
- Grade
- 304
- Standard
- ASTM A312
- Dimensions
- OD 21.3 mm × WT 2.77 mm × Length 6000 mm (NPS 1/2, Sch 40S)
- Condition
- Solution Annealed & Pickled; Plain Ends
- Certification
- EN 10204 3.1 Mill Test Certificate
- Quantity
- 20 Metric Tons
- Packaging
- Seaworthy Export Packing
- Incoterm
- CIF Hamburg
06
Logistics
From mill dispatch to destination port, each stage is coordinated with the nominated forwarder and documented against the purchase specification.
-
Packaging
Export-suitable packaging with surface and edge protection.
Bundled, wrapped or crated according to product form and transport mode. Outer surface protected with weather-resistant material; ends and edges shielded against transit damage.
-
Loading
FCL container for standard sizes; break bulk for oversized cargo.
Container loading via nominated forwarder. LCL and dimensions outside container allowance coordinated against the mill dispatch schedule.
-
Documentation
Commercial invoice, packing list and certificate of origin.
Mill documentation travels with the shipment. EN 10204 3.1 / 3.2 certificates and third-party inspection reports provided as per purchase specification.
-
Shipment
Sea freight as standard; alternative routes on request.
FCL / LCL container shipment or break bulk for oversized dimensions. Logistics coordinated through the nominated forwarder.
-
Delivery
FOB · CFR · CIF · FCA · EXW arrangements available.
Incoterm 2020. Port of loading: Shanghai / Ningbo / Shenzhen. Final destination and terms confirmed per enquiry.
07
FAQ
Most enquiries reduce to a small set of recurring technical questions.
01 What is brushed stainless pipe?
Brushed stainless pipe has a directional satin finish on the OD, typically No.4 (150 - 180 grit), produced by mechanical abrasive polishing. ID finish remains standard mill or pickled.
02 Is brushed pipe suitable for outdoor architectural use?
Yes. Brushed 304 / 316 pipe is widely used for handrails, balustrades, decorative columns and architectural trim. For marine exposure, 316 is preferred.
03 Can brushed pipe be supplied in seamless and welded construction?
Yes. Brushed finish can be applied to both seamless (ASTM A312) and welded (ASTM A778 / A249) stainless pipe constructions.
04 What is the typical diameter range?
Brushed pipe is commonly supplied in NPS 1/2 to NPS 12 (DN15 - DN300). Larger diameters can be supplied on request.
05 What packaging protects the brushed surface?
Individual PE sleeve over each pipe length, with end caps and seaworthy wooden crate or steel frame packaging for export.
