01
ASTM B209 / B209M
Aluminum and aluminum-alloy sheet and plate
Standard specification for aluminum and aluminum-alloy sheet and plate covering dimensions, tolerances and mechanical properties.
Aluminum Alloy — Industrial Product

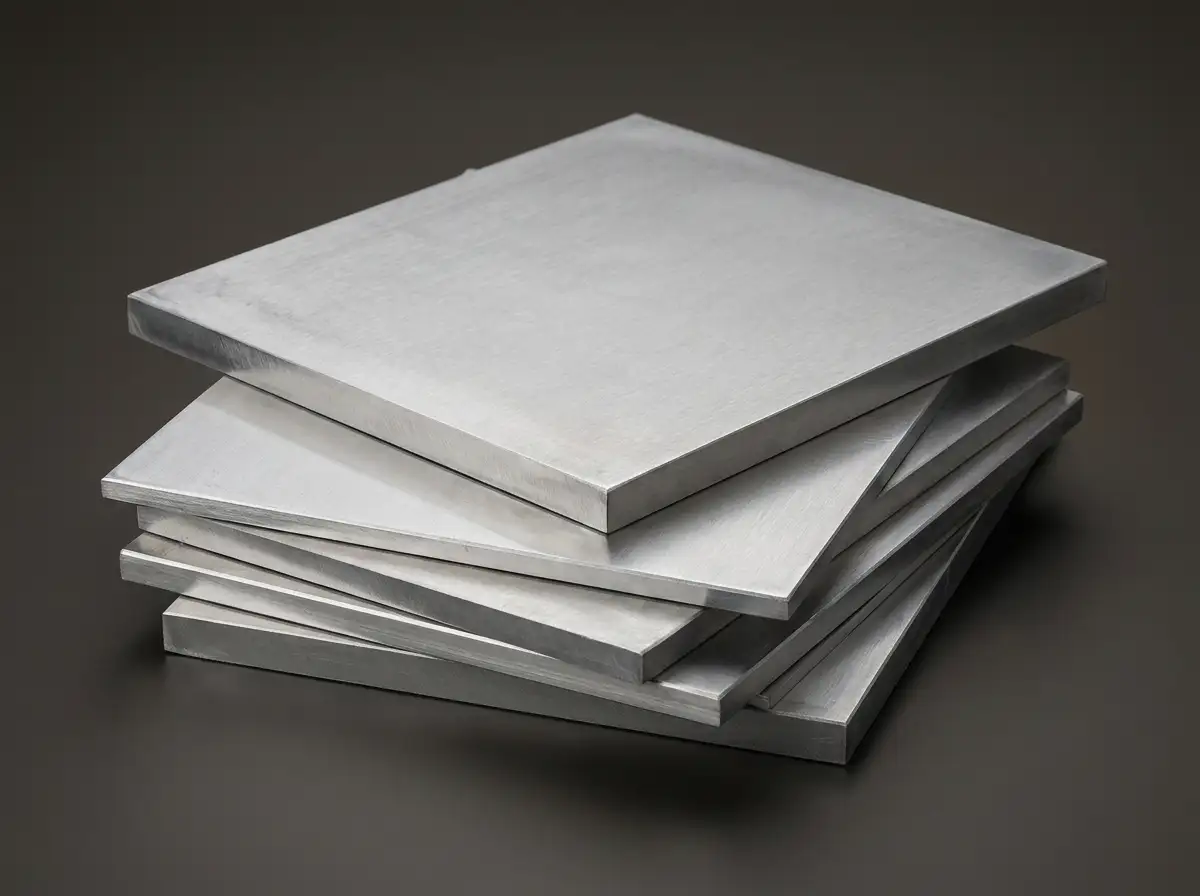

6061 Aluminum Sheets & Plates
6061 aluminum sheets and plates supplied to ASTM B209 / EN 485 for machinery, structural fabrication and general industrial applications.
Indicative priceUSD 2,700 - 3,600 / MT (volume, temper and thickness dependent)
Lead time15 - 30 working days
01
Overview
6061 Aluminum Sheets & Plates combine a magnesium-silicon 6xxx aluminum alloy with controlled hot and cold rolling for reliable mechanical performance, consistent flatness and predictable fabrication behavior. The T6 temper delivers a balanced combination of strength, formability, weldability and corrosion resistance, making the plate and sheet suited to machinery panels and bases, structural components, transport equipment, marine hardware, fabricated tanks and general industrial applications. Supplied to ASTM B209 / EN 485 with mill test certification per EN 10204 3.1, sheets and plates are sourced to specification across a wide thickness range, with cut-to-size plate, custom widths and selected surface finishes available on request.
Key Characteristics
- 01 Anodizable Supports anodizing for improved corrosion resistance and decorative surface options.
- 02 Recyclable 100% recyclable without loss of base material properties.
- 03 Heat Treatable Can be heat treated to achieve selected combinations of strength, hardness and toughness.
- 04 Corrosion Resistance Provides improved resistance to corrosive industrial environments.
- 05 Good Formability Supports bending, forming and other fabrication processes with suitable processing conditions.
- 06 Good Weldability Supports welding using suitable procedures and compatible filler materials.
- 07 Good Machinability Supports efficient machining with appropriate tooling and cutting conditions.
- 08 Low Density Provides reduced weight compared with higher-density engineering metals.
- 09 Dimensional Stability Provides stable dimensions during processing and service under suitable conditions.
- 10 Standard Compliance Manufactured and supplied in accordance with the specified material and product standards.
- 11 Third-Party Inspection Third-party inspection can be arranged according to project and procurement requirements.
Typical Applications
- Machinery & Equipment Shafts, gears, housings, frames and other components for industrial machinery and OEM equipment.
- Railway & Rolling Stock Structural profiles, panels, underframe and other components for rail vehicles and locomotives.
- Marine Engineering Piping, structural components and equipment exposed to chloride-containing marine environments.
- Building & Structural Structural and architectural components for commercial, industrial and high-rise buildings.
- Pressure Vessels Shell, head and nozzle components for pressure vessels designed to ASME, EN or equivalent codes.
- Storage Tanks Atmospheric and low-pressure storage tanks and related components for process facilities and bulk terminals.
- Stamping & Machining Metal forming and machining for stamping, deep drawing, CNC machining and forging operations.
- Welding & Fabrication Metal structures, assemblies and fabricated components for welded construction.
02
Specifications
Numbers in this section correspond to the applicable product standard, formatted for direct use in enquiry and approval documents.
Product specification
- Material
- Aluminum alloy (6xxx series)
- Grade
- 6061 / AlMg1SiCu / AA6061
- Temper
- O / H32 / T6 / T651 (typical); T4 / T451 on request
- UNS designation
- A96061
- EN designation
- EN AW-6061 / AlMg1SiCu
- Product form
- Sheet / plate
- Manufacturing method
- Hot rolled / cold rolled; solution heat-treated and aged where applicable
- Surface / condition
- Mill finish; brushed, anodized or polished on request
- Cross-section
- Flat rectangular section, uniform thickness
Supply specifications
- Thickness
- 0.5 - 150 mm (sheet and plate ranges per ASTM B209 / EN 485)
- Width
- 1,000 - 2,500 mm standard; wider sizes on request
- Length
- 2,000 - 6,000 mm standard; cut-to-length on request
- Tolerance
- Per ASTM B209 / EN 485 as applicable
- Flatness
- Per applicable standard; stretcher-leveled flatness on request
- Surface finish
- Mill finish; brushed, anodized or polished on request
- Edge condition
- Mill edge; slit edge or cut edge on request
- Marking
- Standard mill marking; customer marking on request
Final supply is confirmed against the project drawing, purchase agreement and the mill test certificate.
Chemical composition
ElementRequirement
Si 0.40 - 0.80 %
Fe <= 0.70 %
Cu 0.15 - 0.40 %
Mn <= 0.15 %
Mg 0.80 - 1.20 %
Cr 0.04 - 0.35 %
Zn <= 0.25 %
Ti <= 0.15 %
Other (each) <= 0.05 %
Other (total) <= 0.15 %
Al Balance
Reference: EN AW-6061 / UNS A96061 per EN 573-3 / ASTM B209.
Mechanical properties
PropertyRequirement
Temper O (annealed) Rm <= 150 MPa; Rp0.2 <= 85 MPa; A50 >= 16 %
Temper T4 / T451 Rm >= 205 MPa; Rp0.2 >= 110 MPa; A50 >= 12 %
Temper T6 / T651 Rm >= 290 MPa; Rp0.2 >= 240 MPa; A50 >= 8 %
Hardness T6 ~95 HB typical
Shear strength T6 ~205 MPa
Fatigue strength T6 ~95 MPa (5x10^8 cycles, R = -1)
Reference: Typical values for EN AW-6061 across O / T4 / T6 tempers per EN 485-2 / ASTM B209 at room temperature.
Physical properties
PropertyTypical Value
Density 2.70 g/cm3
Elastic modulus 69 GPa
Shear modulus 26 GPa
Thermal conductivity (T6) 167 W/(m·K)
Electrical conductivity (T6, volume) ~43 % IACS
Specific heat 900 J/(kg·K)
Melting range 580 - 650 °C
Thermal expansion 23.6 x 10-6 /°C (20 - 300 °C)
Reference: Typical material values, 6061 aluminum alloy.
Reference framework
Standards & documentation
The applicable product, dimensional and inspection standards should be confirmed together in the purchase specification.
02
EN 485-2
Aluminum and aluminum alloys - Sheet, strip and plate - Mechanical properties
European reference for mechanical properties of wrought aluminum sheet, strip and plate.
03
EN 573-3
Aluminum and aluminum alloys - Chemical composition
European reference for chemical composition and form of wrought aluminum and aluminum alloys.
04
AMS 4027 / AMS 4025
Aluminum alloy sheet and plate (6061)
Aerospace Material Specification reference for 6061-O / 6061-T6 sheet and plate.
05
QQ-A-250/11
Aluminum alloy 6061 plate and sheet
Historical federal specification for 6061 plate and sheet (often referenced for cross-equivalence).
06
EN 10204
Inspection documents
Defines inspection document types such as 3.1 and 3.2 for metallic product delivery.
03
Capability
From custom dimensions and precision sizing to heat treatment, surface finishing and product-specific processing, Wayland coordinates supply solutions tailored to your requirements.
Cutting
Cut-to-length and custom cutting according to order requirements.
Custom Dimensions
Non-standard dimensions, tolerances and dimensional combinations subject to product and mill capability.
Slitting & Edge Processing
Slitting, edge trimming and related processing according to required width and edge condition.
Precision Sizing
Precision sizing and dimensional control for tighter tolerance requirements.
Cold Working
Cold drawing, cold sizing and other cold-working processes where required.
Heat Treatment
Heat treatment according to material, specification and applicable standard.
Surface Finishing
Surface treatment and finishing according to product, specification and application requirements.
Surface Coating & Plating
Coating, plating and other surface protection treatments according to product and application requirements.
Forming
Bending, forming and other shape modification according to drawings or order requirements.
Machining
Turning, drilling, milling and other machining operations where required.
Welding & Fabrication
Welding, fabrication and related assembly according to drawings and project requirements.
Customization
Custom dimensions, lengths, surface conditions, end preparations and inspection requirements can be supplied according to project specifications. Final capability is confirmed per enquiry based on grade, size range and applicable standard.
04
Quality
Inspection and documentation procedures are coordinated to meet the requirements of the applicable product standard and the project specification.
- Dimensional inspection Geometry, dimensions and tolerances against the applicable standard
- Visual and surface inspection Surface condition, marking and overall appearance
Documents
- Inspection Report
- Chemical analysis Per heat, against the applicable standard
- Mechanical testing Tensile, yield, elongation and hardness
- Non-destructive testing UT, eddy-current, hydrostatic or other NDT as applicable
- Positive material identification PMI for alloy verification when required
Documents
- Mill Test Certificate (MTC)
- Heat number traceability Heat number carried through MTC and product marking
- Third-party inspection coordination SGS / BV / TÜV on request
Documents
- Third-Party Inspection Report
- EN 10204 documentation 3.1 MTC standard; 3.2 on request
Documents
- EN 10204 3.1 Mill Test Certificate
- EN 10204 3.2 Inspection Certificate
- Certificate of Origin
05
Selection
A well-prepared specification is the most efficient defence against clarification cycles.
- 01 Select material & grade
Choose the material grade according to service conditions, performance requirements and applicable standards.
- 02 Define size & supply condition
Specify the required dimensions, surface condition, heat-treatment condition and delivery requirements.
- 03 Confirm standard & requirements
State the applicable product standard, dimensional standard and governing project specification.
- 04 Define inspection & documentation
Confirm inspection, testing, certification and documentation requirements before order placement.
Example procurement specification
A complete specification suitable for enquiry, covering product, technical requirements, certification and delivery terms.
- Product
- 6061 Aluminum Sheets & Plates
- Grade
- 6061
- Standard
- ASTM B209
- Dimensions
- Thickness 10.0 mm x Width 1500 mm x Length 3000 mm; Temper T6 / T651; or per drawing
- Condition
- Rolled; Mill Finish; Mill Edge
- Certification
- EN 10204 3.1 Mill Test Certificate
- Quantity
- 20 Metric Tons
- Packaging
- Seaworthy Export Packing
- Incoterm
- CIF Hamburg
06
Logistics
From mill dispatch to destination port, each stage is coordinated with the nominated forwarder and documented against the purchase specification.
-
Packaging
Export-suitable packaging with surface and edge protection.
Bundled, wrapped or crated according to product form and transport mode. Outer surface protected with weather-resistant material; ends and edges shielded against transit damage.
-
Loading
FCL container for standard sizes; break bulk for oversized cargo.
Container loading via nominated forwarder. LCL and dimensions outside container allowance coordinated against the mill dispatch schedule.
-
Documentation
Commercial invoice, packing list and certificate of origin.
Mill documentation travels with the shipment. EN 10204 3.1 / 3.2 certificates and third-party inspection reports provided as per purchase specification.
-
Shipment
Sea freight as standard; alternative routes on request.
FCL / LCL container shipment or break bulk for oversized dimensions. Logistics coordinated through the nominated forwarder.
-
Delivery
FOB · CFR · CIF · FCA · EXW arrangements available.
Incoterm 2020. Port of loading: Shanghai / Ningbo / Shenzhen. Final destination and terms confirmed per enquiry.
07
FAQ
Most enquiries reduce to a small set of recurring technical questions.
01 What is 6061 aluminum sheet and plate?
6061 (EN AW-6061 / AlMg1SiCu) is a magnesium-silicon-copper 6xxx aluminum alloy. In the T6 / T651 temper it offers a balanced combination of strength, weldability, formability and corrosion resistance, and is one of the most widely used general-purpose structural aluminum alloys.
02 What is the typical thickness range supplied?
Sheet and plate are typically supplied from 0.5 mm up to approximately 150 mm, with thinner sheet, plate and cut-to-size plate subject to mill capability and order quantity.
03 What tempers are available for 6061 plate?
O (annealed), T4 / T451 (solution heat-treated), T6 / T651 (solution heat-treated and artificially aged) are the most common tempers for 6061 plate and sheet. Other tempers are available on request.
04 What is the difference between sheet and plate?
In aluminum product standards, plate generally refers to flat products at or above approximately 6.35 mm (1/4 in) thickness, while sheet covers thinner gauges. The applicable tolerances and delivery conditions differ accordingly.
05 Is 6061 plate suitable for welded fabrication?
Yes. 6061 is weldable using appropriate filler alloys (e.g. 4043 / 5356) and procedures. For heavily welded assemblies, T6 temper is typically supplied after welding rather than welded in the T6 condition, depending on the specification.
