UNS C10700
Silver-bearing oxygen-free copper
Copper Development Association designation for silver-bearing oxygen-free copper containing a minimum of 0.085 % silver.
Copper-Silver Alloy — Industrial Product

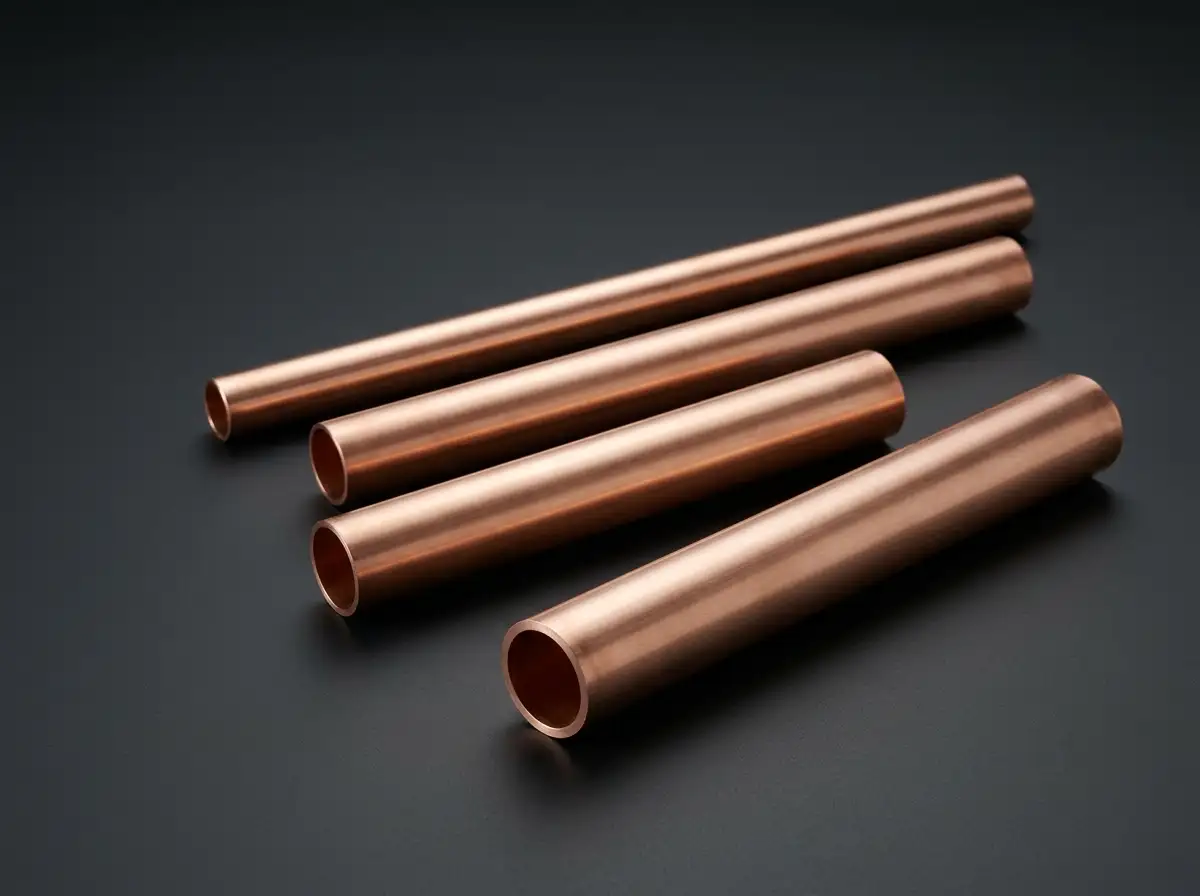

CuAg0.1 Copper Tube
Seamless CuAg0.1 silver-bearing oxygen-free copper tube supplied to UNS C10700 / EN CW019A for electrical conductors and high-temperature applications.
Indicative priceUSD 12,000 - 18,000 / MT (volume dependent)
Lead time20 - 35 working days
01
Overview
CuAg0.1 Copper Tube combines silver-bearing oxygen-free copper with a minimum of 0.085% silver and tight control of residual oxygen for high electrical and thermal conductivity with improved resistance to softening at elevated temperatures. The seamless cold-drawn tube is supplied across EN 1652 tempers from H040 annealed through H110 hard drawn, suited to electrical conductors, busbars, motor components, terminals and high-temperature parts. Supplied to UNS C10700 / EN CW019A with mill test certification per EN 10204 3.1, it supports global procurement for electrical and power projects.
Key Characteristics
- 01 High Electrical Conductivity Provides high electrical conductivity for power, electrical and conductive applications.
- 02 High Thermal Conductivity Provides high thermal conductivity for efficient heat transfer applications.
- 03 Low Electrical Resistivity Provides low electrical resistivity for applications requiring efficient current transmission.
- 04 Heat Resistance Provides resistance to degradation and loss of performance at elevated temperatures.
- 05 High Temperature Capability Suitable for elevated-temperature service within the applicable material limits.
- 06 Thermal Stability Maintains stable properties across the intended operating temperature range.
- 07 Seamless Construction Manufactured without a longitudinal welded seam in the product body.
- 08 Cold Drawn Cold drawing provides controlled dimensions, improved surface quality and enhanced mechanical properties.
- 09 Good Formability Supports bending, forming and other fabrication processes with suitable processing conditions.
- 10 Good Bendability Supports bending operations with appropriate tooling and processing conditions.
- 11 Good Drawability Suitable for drawing operations requiring controlled plastic deformation.
- 12 Precision Dimensions Available with controlled dimensions for applications requiring consistent fit and assembly.
- 13 Tight Dimensional Tolerance Suitable for applications requiring controlled dimensional tolerances.
- 14 Uniform Surface Provides a consistent surface condition suitable for industrial fabrication and further processing.
- 15 Smooth Surface Provides a smooth surface suitable for fabrication, installation and selected service applications.
- 16 Bright Surface Provides a bright, clean surface finish produced through controlled processing.
- 17 Mill Test Certificate Available with mill test documentation confirming specified chemical and mechanical properties.
- 18 Standard Compliance Manufactured and supplied in accordance with the specified material and product standards.
- 19 Traceable Documentation Supplied with documentation supporting material identification, chemical and mechanical traceability.
Typical Applications
- Electronics & Electrical Conductive, shielding and structural components for electrical and electronic equipment.
- Machinery & Equipment Shafts, gears, housings, frames and other components for industrial machinery and OEM equipment.
- Heat Exchangers Shell-and-tube, plate and finned heat exchangers for HVAC, process and refrigeration applications.
- Power Generation Piping, tubing and structural components for conventional and combined-cycle power stations.
- Appliance Manufacturing Enclosures, panels and structural components for household and commercial appliances.
- Welding & Fabrication Metal structures, assemblies and fabricated components for welded construction.
- Stamping & Machining Metal forming and machining for stamping, deep drawing, CNC machining and forging operations.
02
Specifications
Numbers in this section correspond to the applicable product standard, formatted for direct use in enquiry and approval documents.
Product specification
- Material
- Silver-bearing oxygen-free copper (CuAg0.10(OF))
- Grade
- CuAg0.1 / C10700 / CW019A
- UNS designation
- C10700
- EN designation
- CW019A / CuAg0.10(OF)
- Product form
- Seamless tube
- Manufacturing method
- Cold drawn, seamless
- Surface / condition
- Bright drawn / mill finish
- Cross-section
- Hollow circular, uniform wall thickness
- End condition
- Plain end; cut-to-length on request
Supply specifications
- Outside diameter
- 3 - 60 mm (typical); larger sizes on request
- Wall thickness
- 0.5 - 5.0 mm (typical)
- Length
- Up to 6 m; cut-to-length on request
- Temper
- H040 / R200 (soft) through H110 / R360 (hard); per EN 1652
- Tolerance
- Per EN 12449 / ASTM B75 / B68 as applicable
- Surface finish
- Bright drawn; mill finish
- Marking
- Standard mill marking; customer marking on request
Final supply is confirmed against the project drawing, purchase agreement and the mill test certificate.
Chemical composition
ElementRequirement
Cu (incl. Ag) >= 99.95 %
Ag >= 0.085 %
O <= 0.001 %
Other elements (total) <= 0.05 %
Reference: Applicable CuAg0.10(OF) / CW019A / UNS C10700.
Mechanical properties
PropertyRequirement
Temper H040 / R200 (soft annealed) Rm 200-250 MPa; Rp0.2 <=100 MPa; HV 40-65
Temper H065 / R240 (quarter hard) Rm 240-300 MPa; Rp0.2 >=180 MPa; HV 65-95
Temper H090 / R290 (half hard) Rm 290-360 MPa; Rp0.2 >=250 MPa; HV 90-110
Temper H110 / R360 (hard) Rm >=360 MPa; Rp0.2 >=320 MPa; HV >=110
Hardness capability HV 120 guaranteed; HV 130 achievable under optimized cold-work conditions; HV 140 not reliably guaranteed for CuAg0.10
Elongation (annealed, A50) >= 30 %
Reference: Applicable EN 1652 temper ranges; CuAg0.10(OF) per Aurubis reference data. Hardness up to HV 120 guaranteed; HV 130 achievable under optimized cold-work conditions.
Physical properties
PropertyTypical Value
Density 8.94 g/cm³
Electrical conductivity (annealed) 100 % IACS
Electrical resistivity 0.0172 μΩ·m at 20 °C
Thermal conductivity 388 W/(m·K) at 20 °C
Specific heat 0.385 J/(g·K) at 20 °C
Elastic modulus 115 GPa
Melting point 1,083 °C
Thermal expansion 17.0 x 10⁻⁶ /°C (20 - 300 °C)
Reference: Typical values for annealed CuAg0.10(OF) silver-bearing oxygen-free copper.
Reference framework
Standards & documentation
The applicable product, dimensional and inspection standards should be confirmed together in the purchase specification.
02
EN CW019A / CuAg0.10(OF)
Copper-silver alloy designation
European designation for CuAg0.10 oxygen-free copper alloy; chemical composition per EN 1652.
03
EN 1652
Copper and copper alloys — Plate, sheet, strip and circles for general purposes
European reference for thickness, mechanical and hardness properties across designated tempers (R200 / R240 / R290 / R360).
04
EN 12449
Copper and copper alloys — Seamless round tubes for general purposes
European reference for seamless round copper tubes covering dimensions, tolerances and delivery conditions.
05
ASTM B75 / B75M
Seamless copper tube
Standard specification for seamless copper tube for general engineering and refinery service.
06
ASTM B68 / B68M
Seamless copper tube, bright annealed
Standard specification for seamless copper tube in bright annealed condition.
07
EN 10204
Inspection documents
Defines inspection document types such as 3.1 and 3.2 for metallic product delivery.
03
Capability
From custom dimensions and precision sizing to heat treatment, surface finishing and product-specific processing, Wayland coordinates supply solutions tailored to your requirements.
Cutting
Cut-to-length and custom cutting according to order requirements.
Custom Dimensions
Non-standard dimensions, tolerances and dimensional combinations subject to product and mill capability.
Precision Sizing
Precision sizing and dimensional control for tighter tolerance requirements.
Cold Working
Cold drawing, cold sizing and other cold-working processes where required.
Heat Treatment
Heat treatment according to material, specification and applicable standard.
Surface Finishing
Surface treatment and finishing according to product, specification and application requirements.
Forming
Bending, forming and other shape modification according to drawings or order requirements.
End Preparation
Beveling, threading, chamfering and other end preparation according to product requirements.
Customization
Custom dimensions, lengths, surface conditions, end preparations and inspection requirements can be supplied according to project specifications. Final capability is confirmed per enquiry based on grade, size range and applicable standard.
04
Quality
Inspection and documentation procedures are coordinated to meet the requirements of the applicable product standard and the project specification.
- Dimensional inspection Geometry, dimensions and tolerances against the applicable standard
- Visual and surface inspection Surface condition, marking and overall appearance
Documents
- Inspection Report
- Chemical analysis Per heat, against the applicable standard
- Mechanical testing Tensile, yield, elongation and hardness
- Non-destructive testing UT, eddy-current, hydrostatic or other NDT as applicable
- Positive material identification PMI for alloy verification when required
Documents
- Mill Test Certificate (MTC)
- Heat number traceability Heat number carried through MTC and product marking
- Third-party inspection coordination SGS / BV / TÜV on request
Documents
- Third-Party Inspection Report
- EN 10204 documentation 3.1 MTC standard; 3.2 on request
Documents
- EN 10204 3.1 Mill Test Certificate
- EN 10204 3.2 Inspection Certificate
- Certificate of Origin
05
Selection
A well-prepared specification is the most efficient defence against clarification cycles.
- 01 Select material & grade
Choose the material grade according to service conditions, performance requirements and applicable standards.
- 02 Define size & supply condition
Specify the required dimensions, surface condition, heat-treatment condition and delivery requirements.
- 03 Confirm standard & requirements
State the applicable product standard, dimensional standard and governing project specification.
- 04 Define inspection & documentation
Confirm inspection, testing, certification and documentation requirements before order placement.
Example procurement specification
A complete specification suitable for enquiry, covering product, technical requirements, certification and delivery terms.
- Product
- CuAg0.1 Copper Tube
- Grade
- C10700
- Standard
- EN 12449
- Dimensions
- OD 20 mm × WT 2.0 mm × Length 3000 mm (or per drawing)
- Condition
- Seamless cold drawn; Temper H090 / R290 (half hard) or as specified
- Certification
- EN 10204 3.1 Mill Test Certificate
- Quantity
- 20 Metric Tons
- Packaging
- Seaworthy Export Packing
- Incoterm
- CIF Hamburg
06
Logistics
From mill dispatch to destination port, each stage is coordinated with the nominated forwarder and documented against the purchase specification.
-
Packaging
Export-suitable packaging with surface and edge protection.
Bundled, wrapped or crated according to product form and transport mode. Outer surface protected with weather-resistant material; ends and edges shielded against transit damage.
-
Loading
FCL container for standard sizes; break bulk for oversized cargo.
Container loading via nominated forwarder. LCL and dimensions outside container allowance coordinated against the mill dispatch schedule.
-
Documentation
Commercial invoice, packing list and certificate of origin.
Mill documentation travels with the shipment. EN 10204 3.1 / 3.2 certificates and third-party inspection reports provided as per purchase specification.
-
Shipment
Sea freight as standard; alternative routes on request.
FCL / LCL container shipment or break bulk for oversized dimensions. Logistics coordinated through the nominated forwarder.
-
Delivery
FOB · CFR · CIF · FCA · EXW arrangements available.
Incoterm 2020. Port of loading: Shanghai / Ningbo / Shenzhen. Final destination and terms confirmed per enquiry.
07
FAQ
Most enquiries reduce to a small set of recurring technical questions.
01 What is CuAg0.1 copper tube (C10700 / CW019A)?
CuAg0.1 is a silver-bearing oxygen-free copper alloy (UNS C10700 / EN CW019A / CuAg0.10(OF)) containing a minimum of 0.085 % silver. The silver addition improves resistance to softening at elevated temperatures while retaining near-pure-copper electrical and thermal conductivity (100 % IACS in the annealed condition).
02 What tempers and hardness levels are available for CuAg0.1 tube?
CuAg0.1 tubes are supplied across EN 1652 tempers from H040 / R200 (annealed, HV 40-65) through H110 / R360 (hard drawn, HV >=110). Hardness up to HV 120 is guaranteed; HV 130 can be achieved under optimized cold-work conditions. Hardness beyond HV 130 cannot be reliably guaranteed for CuAg0.10 because hardness is primarily from cold work and the process window narrows at the upper end.
03 What is the typical chemical composition of CuAg0.1?
Cu (including Ag) is at least 99.95 %, Ag is at least 0.085 %, and residual oxygen is limited to 0.001 % maximum (oxygen-free). The silver content gives CuAg0.1 improved creep resistance and resistance to thermal softening compared with pure OF-Cu, while preserving high conductivity.
04 What are the typical applications for CuAg0.1 copper tube?
CuAg0.1 copper tube is used for high-conductivity electrical conductors, busbars, motor and commutator components, terminals, connectors and other conductive parts exposed to elevated temperatures where pure oxygen-free copper would soften.
05 Which standards apply to CuAg0.1 copper tube?
CuAg0.1 tube is supplied to UNS C10700 (CDA) and EN CW019A / CuAg0.10(OF) with reference to EN 1652 for temper and mechanical properties and EN 12449 for seamless round tube dimensions. ASTM B75 / B68 may apply for general engineering or refinery service. EN 10204 3.1 mill test certificate is provided as standard documentation.
