ASTM B210 / B210M
Aluminum and aluminum-alloy drawn seamless tubes
Standard specification for drawn seamless aluminum and aluminum-alloy tubes for general purpose and pressure applications.
Aluminum Alloy — Industrial Product

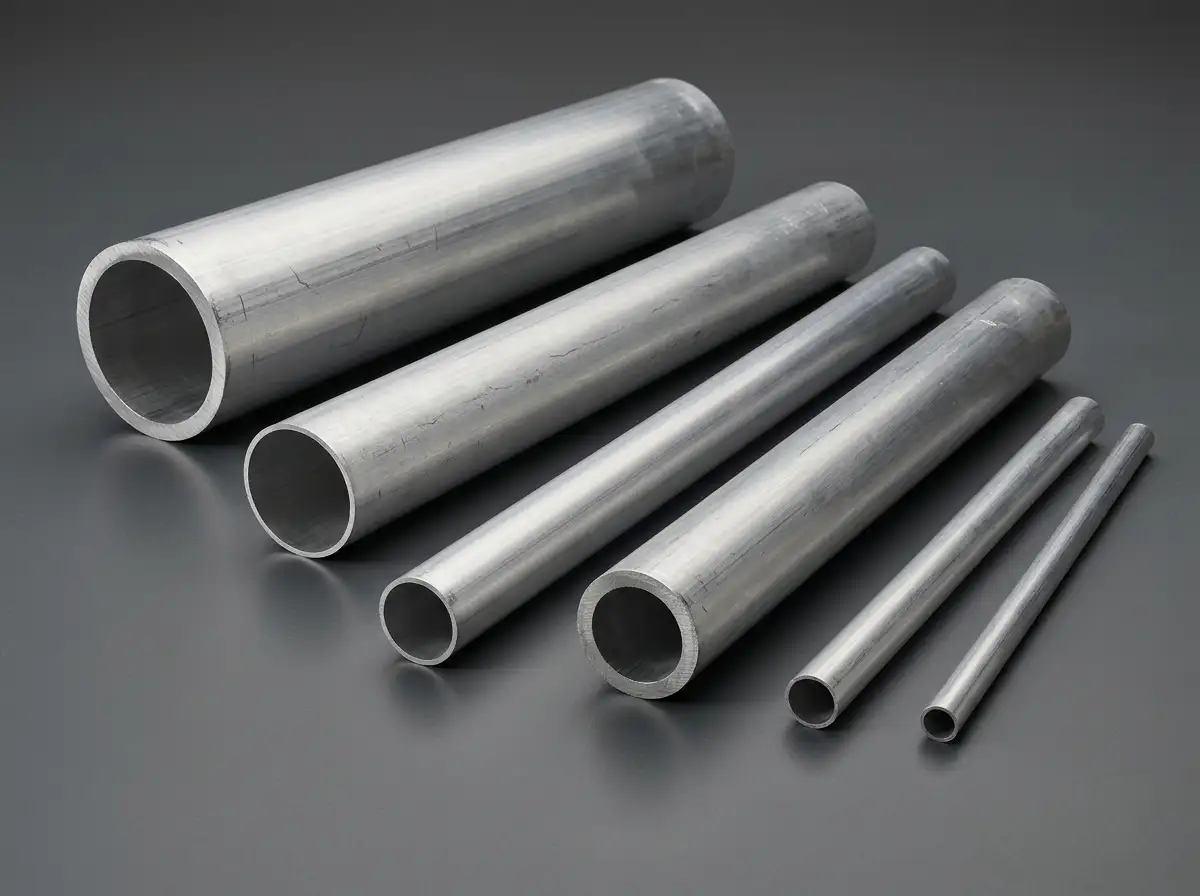

6061 Aluminum Tubes & Pipes
6061 aluminum tubes and pipes supplied to ASTM B210 / ASTM B221 for industrial equipment, heat transfer and structural applications.
Indicative priceUSD 3,200 - 4,200 / MT (volume, OD/WT and shape dependent)
Lead time20 - 35 working days
01
Overview
6061 Aluminum Tubes & Pipes combine a magnesium-silicon-copper 6xxx aluminum alloy with controlled seamless drawing or extrusion for reliable mechanical performance, consistent dimensional control and predictable fabrication behavior. The T6 temper delivers a balanced combination of strength, weldability, machinability and corrosion resistance, making the tube suited to industrial equipment frames, heat exchanger and condenser tubing, automotive components, structural applications and general industrial fabrication. Supplied to ASTM B210 (drawn seamless) or ASTM B221 (extruded) as applicable, with mill test certification per EN 10204 3.1, tubes and pipes are sourced to specification across a range of standard and custom outside diameters, wall thicknesses and shapes, with selected surface finishes available on request.
Key Characteristics
- 01 Anodizable Supports anodizing for improved corrosion resistance and decorative surface options.
- 02 Recyclable 100% recyclable without loss of base material properties.
- 03 Heat Treatable Can be heat treated to achieve selected combinations of strength, hardness and toughness.
- 04 Corrosion Resistance Provides improved resistance to corrosive industrial environments.
- 05 Good Formability Supports bending, forming and other fabrication processes with suitable processing conditions.
- 06 Good Weldability Supports welding using suitable procedures and compatible filler materials.
- 07 Good Machinability Supports efficient machining with appropriate tooling and cutting conditions.
- 08 Low Density Provides reduced weight compared with higher-density engineering metals.
- 09 Precision Dimensions Available with controlled dimensions for applications requiring consistent fit and assembly.
- 10 Seamless Construction Manufactured without a longitudinal welded seam in the product body.
- 11 Standard Compliance Manufactured and supplied in accordance with the specified material and product standards.
- 12 Third-Party Inspection Third-party inspection can be arranged according to project and procurement requirements.
Typical Applications
- Fluid Handling Conveyance, distribution and treatment systems for industrial and process fluids, covering liquids, gases and other industrial media.
- Refrigeration Heat-exchange components for HVAC, refrigeration and cooling systems.
- Heat Exchangers Shell-and-tube, plate and finned heat exchangers for HVAC, process and refrigeration applications.
- Machinery & Equipment Shafts, gears, housings, frames and other components for industrial machinery and OEM equipment.
- Railway & Rolling Stock Structural profiles, panels, underframe and other components for rail vehicles and locomotives.
- Marine Engineering Piping, structural components and equipment exposed to chloride-containing marine environments.
- Building & Structural Structural and architectural components for commercial, industrial and high-rise buildings.
- Welding & Fabrication Metal structures, assemblies and fabricated components for welded construction.
02
Specifications
Numbers in this section correspond to the applicable product standard, formatted for direct use in enquiry and approval documents.
Product specification
- Material
- Aluminum alloy (6xxx series)
- Grade
- 6061 / AlMg1SiCu / AA6061
- Temper
- T6 / T6511 (typical); O / T4 on request
- UNS designation
- A96061
- EN designation
- EN AW-6061 / AlMg1SiCu
- Product form
- Seamless drawn or extruded tube / pipe
- Manufacturing method
- Cold drawn seamless; or hot extruded per ASTM B221
- Surface / condition
- Mill finish; anodized, brushed or polished on request
- Cross-section
- Hollow circular, uniform wall thickness; square and rectangular on request
- End condition
- Plain end; cut-to-length or machined ends on request
Supply specifications
- Outside diameter
- 6 - 250 mm (drawn seamless); larger sizes available as extruded per ASTM B221
- Wall thickness
- 0.5 - 30 mm typical; subject to OD and mill capability
- Inside diameter
- Per OD and wall thickness combination
- Length
- Up to 6 m standard; cut-to-length on request
- Shape
- Round; square and rectangular tube on request
- Tolerance
- Per ASTM B210 (drawn) / ASTM B221 (extruded) as applicable
- Surface finish
- Mill finish; anodized, brushed or polished on request
- Marking
- Standard mill marking; customer marking on request
Final supply is confirmed against the project drawing, purchase agreement and the mill test certificate.
Chemical composition
ElementRequirement
Si 0.40 - 0.80 %
Fe <= 0.70 %
Cu 0.15 - 0.40 %
Mn <= 0.15 %
Mg 0.80 - 1.20 %
Cr 0.04 - 0.35 %
Zn <= 0.25 %
Ti <= 0.15 %
Other (each) <= 0.05 %
Other (total) <= 0.15 %
Al Balance
Reference: EN AW-6061 / UNS A96061 per EN 573-3 / ASTM B210 / ASTM B221.
Mechanical properties
PropertyRequirement
Temper O (annealed, drawn) Rm <= 150 MPa; Rp0.2 <= 85 MPa; A50 >= 16 %
Temper T4 (drawn) Rm >= 205 MPa; Rp0.2 >= 110 MPa; A50 >= 12 %
Temper T6 (drawn or extruded) Rm >= 290 MPa; Rp0.2 >= 240 MPa; A50 >= 8 %
Temper T6511 (extruded) Rm >= 290 MPa; Rp0.2 >= 240 MPa; A50 >= 8 %
Hardness T6 ~95 HB typical
Shear strength T6 ~205 MPa
Reference: Typical values for EN AW-6061 across O / T4 / T6 tempers per ASTM B210 (drawn seamless) and ASTM B221 (extruded) at room temperature.
Physical properties
PropertyTypical Value
Density 2.70 g/cm3
Elastic modulus 69 GPa
Shear modulus 26 GPa
Thermal conductivity (T6) 167 W/(m·K)
Electrical conductivity (T6, volume) ~43 % IACS
Specific heat 900 J/(kg·K)
Melting range 580 - 650 °C
Thermal expansion 23.6 x 10-6 /°C (20 - 300 °C)
Reference: Typical material values, 6061 aluminum alloy.
Reference framework
Standards & documentation
The applicable product, dimensional and inspection standards should be confirmed together in the purchase specification.
02
ASTM B221 / B221M
Aluminum and aluminum-alloy extruded bars, rods, wire, profiles and tubes
Standard specification for extruded aluminum and aluminum-alloy products covering dimensions, tolerances and mechanical properties (includes extruded tubes).
03
ASTM B241 / B241M
Aluminum and aluminum-alloy seamless pipe and seamless extruded tube
Standard specification for aluminum and aluminum-alloy seamless pipe and seamless extruded tube.
04
EN 755-2
Aluminum and aluminum alloys - Extruded rod/bar, tube and profiles
European reference for mechanical properties of extruded aluminum products.
05
EN 573-3
Aluminum and aluminum alloys - Chemical composition
European reference for chemical composition and form of wrought aluminum and aluminum alloys.
06
EN 10204
Inspection documents
Defines inspection document types such as 3.1 and 3.2 for metallic product delivery.
03
Capability
From custom dimensions and precision sizing to heat treatment, surface finishing and product-specific processing, Wayland coordinates supply solutions tailored to your requirements.
Cutting
Cut-to-length and custom cutting according to order requirements.
Custom Dimensions
Non-standard dimensions, tolerances and dimensional combinations subject to product and mill capability.
Precision Sizing
Precision sizing and dimensional control for tighter tolerance requirements.
Cold Working
Cold drawing, cold sizing and other cold-working processes where required.
Heat Treatment
Heat treatment according to material, specification and applicable standard.
Surface Finishing
Surface treatment and finishing according to product, specification and application requirements.
Surface Coating & Plating
Coating, plating and other surface protection treatments according to product and application requirements.
Forming
Bending, forming and other shape modification according to drawings or order requirements.
End Preparation
Beveling, threading, chamfering and other end preparation according to product requirements.
Machining
Turning, drilling, milling and other machining operations where required.
Welding & Fabrication
Welding, fabrication and related assembly according to drawings and project requirements.
Customization
Custom dimensions, lengths, surface conditions, end preparations and inspection requirements can be supplied according to project specifications. Final capability is confirmed per enquiry based on grade, size range and applicable standard.
04
Quality
Inspection and documentation procedures are coordinated to meet the requirements of the applicable product standard and the project specification.
- Dimensional inspection Geometry, dimensions and tolerances against the applicable standard
- Visual and surface inspection Surface condition, marking and overall appearance
Documents
- Inspection Report
- Chemical analysis Per heat, against the applicable standard
- Mechanical testing Tensile, yield, elongation and hardness
- Non-destructive testing UT, eddy-current, hydrostatic or other NDT as applicable
- Positive material identification PMI for alloy verification when required
Documents
- Mill Test Certificate (MTC)
- Heat number traceability Heat number carried through MTC and product marking
- Third-party inspection coordination SGS / BV / TÜV on request
Documents
- Third-Party Inspection Report
- EN 10204 documentation 3.1 MTC standard; 3.2 on request
Documents
- EN 10204 3.1 Mill Test Certificate
- EN 10204 3.2 Inspection Certificate
- Certificate of Origin
05
Selection
A well-prepared specification is the most efficient defence against clarification cycles.
- 01 Select material & grade
Choose the material grade according to service conditions, performance requirements and applicable standards.
- 02 Define size & supply condition
Specify the required dimensions, surface condition, heat-treatment condition and delivery requirements.
- 03 Confirm standard & requirements
State the applicable product standard, dimensional standard and governing project specification.
- 04 Define inspection & documentation
Confirm inspection, testing, certification and documentation requirements before order placement.
Example procurement specification
A complete specification suitable for enquiry, covering product, technical requirements, certification and delivery terms.
- Product
- 6061 Aluminum Tubes & Pipes
- Grade
- 6061
- Standard
- ASTM B210
- Dimensions
- OD 25 mm x Wall 2.5 mm x Length 6000 mm; Round; Temper T6; or per drawing
- Condition
- Seamless cold drawn; Temper T6; Mill Finish; Plain End
- Certification
- EN 10204 3.1 Mill Test Certificate
- Quantity
- 20 Metric Tons
- Packaging
- Seaworthy Export Packing
- Incoterm
- CIF Hamburg
06
Logistics
From mill dispatch to destination port, each stage is coordinated with the nominated forwarder and documented against the purchase specification.
-
Packaging
Export-suitable packaging with surface and edge protection.
Bundled, wrapped or crated according to product form and transport mode. Outer surface protected with weather-resistant material; ends and edges shielded against transit damage.
-
Loading
FCL container for standard sizes; break bulk for oversized cargo.
Container loading via nominated forwarder. LCL and dimensions outside container allowance coordinated against the mill dispatch schedule.
-
Documentation
Commercial invoice, packing list and certificate of origin.
Mill documentation travels with the shipment. EN 10204 3.1 / 3.2 certificates and third-party inspection reports provided as per purchase specification.
-
Shipment
Sea freight as standard; alternative routes on request.
FCL / LCL container shipment or break bulk for oversized dimensions. Logistics coordinated through the nominated forwarder.
-
Delivery
FOB · CFR · CIF · FCA · EXW arrangements available.
Incoterm 2020. Port of loading: Shanghai / Ningbo / Shenzhen. Final destination and terms confirmed per enquiry.
07
FAQ
Most enquiries reduce to a small set of recurring technical questions.
01 What is 6061 aluminum tube?
6061 (EN AW-6061 / AlMg1SiCu) is a magnesium-silicon-copper 6xxx aluminum alloy supplied as drawn seamless tube (ASTM B210) or extruded tube (ASTM B221). In the T6 temper it offers a balanced combination of strength, weldability, machinability and corrosion resistance.
02 What shapes of 6061 tube are available?
Round is the standard shape. Square and rectangular tube are available on request. Outside diameters typically range from 6 mm to 250 mm for drawn seamless tube, with larger sizes available as extruded tube.
03 What is the difference between drawn seamless and extruded tube?
Drawn seamless tube (ASTM B210) is produced by cold drawing a pierced billet, giving tighter dimensional tolerance and a smoother surface finish. Extruded tube (ASTM B221) is produced by hot extrusion through a die and is typically used for larger sizes and thicker walls where tight tolerance is less critical.
04 Is 6061 tube suitable for welded fabrication?
Yes. 6061 tube is weldable using appropriate filler alloys (e.g. 4043 / 5356) and procedures. For pressure or fluid handling service where applicable, the relevant design code and qualification procedure must be followed.
05 Is 6061 tube suitable for heat exchanger service?
6061 is used for industrial heat exchanger and condenser tubing where its combination of thermal conductivity, mechanical strength and corrosion resistance is suitable for the service conditions. The specific application, medium and design code must be evaluated by the project engineer.
